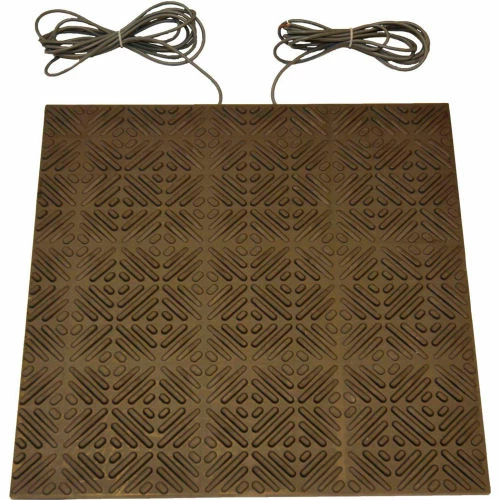

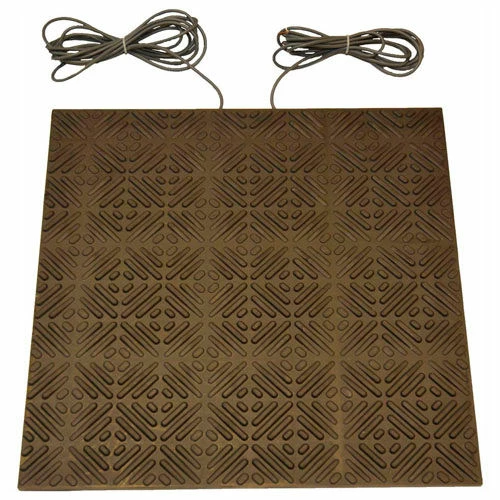

Bircher Reglomat CESM-21CB-2424 Safety Switch Mat 24" x 24" Black

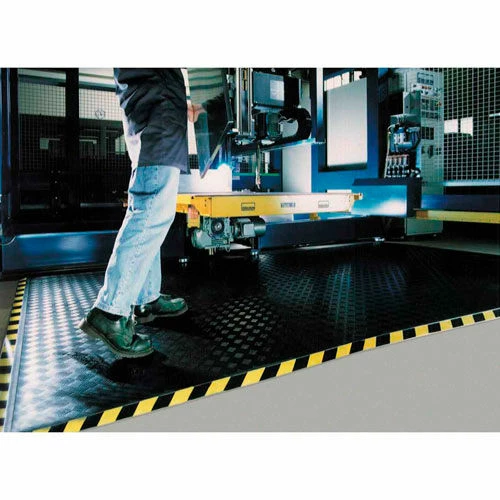

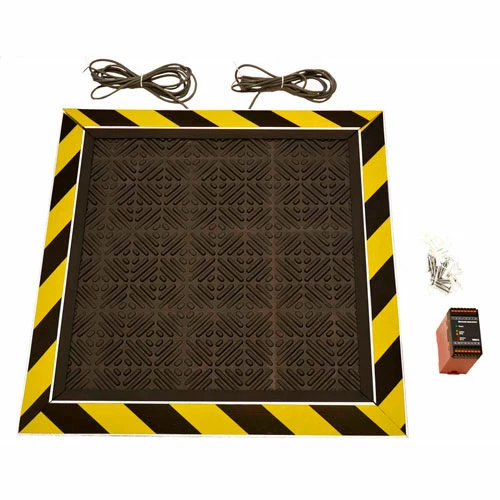

Durable and reliable pressure- sensitive safety switch mats, ramp trim kits (sold separately) and safety controllers (sold separately) from Bircher Reglomat. For protection of people around machinery, robots and other hazardous areas. When a person, forklift, or other vehicle activates the mat, it sends a signal to the controller to stop the machine. May also be used as a signal mat for activation of a device or counter through presence detection.

Features:

• Molded, totally sealed design is water resistant
• NEMA 4 (IP67) Protection class
• Meets PL e, Safety Cat 3 acc. to EN ISO 13849, test acc. to EN ISO 13856-1 when used with safety controller
• Easy to install two-wire fail-safe connection is achieved when used with Bircher Reglomat safety controller & resistor (resistor supplied complimentary)
• Can also be wired as a four-wire system
• Each mat supplied with Two 12 foot 2 x 20 AWG wire leads inside 5 AWG PVC jacket, exiting the middle of one side of the mat
• Mat is Black with non-skid diamond surface pattern
