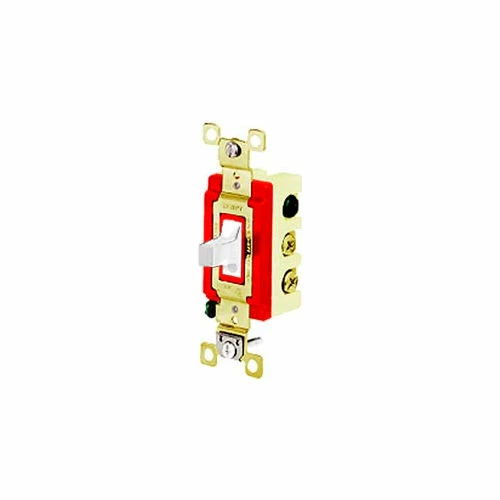

Bryant 4925W Toggle Switch, Double Pole, Double Throw, 20A, 120/277V AC, White

Original price was: $61.95.Current price is: $43.37.

SKU: Bryant WBB211207 Categories: Switches, Receptacles & Sensors, Wall Switches Tags: 120 / 277V AC V, 20 A, 4925W, Back & Side Wired, Bryant, Lighting & Electrical, Standard, White

Quick responses, top-notch service.
Get the Best for Less
Secure Payments, Secure Shopping
fast shipping

Special Purpose AC, Industrial Switches

Construction:

Base Material: Thermoset
Face Material: Thermoset, Color coded by voltage
Toggle/Actuator Material: Nylon
Terminals: High Performance Copper Alloy
Mounting Yoke: Brass and Nickel Plated Steel
Contacts: Silver Cadmium Oxide
Movable Contact Arm: High Performance Copper Alloy
Rocker: Thermoplastic Elastomer
Ground Terminal: Brass and Nickel Plated Steel
Terminal Screws: Brass
Ground Screw: Brass (green)
Auto Ground Clip: Stainless Steel

Technical Specs:

Dielectric Voltage: Withstands 1500V Minimum
Overload: Minimum 48 times rated current for 100 cycles
Temp. Rise: 30 deg C maximum at rated current
Max Continuous Current: 20A
Flammibility: UL 94 V2
Operating Temperature: Maximum continuous 75 deg C- Minimum -40 dec C (w/o impact)

Certifications:

Standards: Complies with UL 20 and NEMA WD-1
UL Certification: UL Listed, File E1464, Guide #WMUZ, CSA Approved

Terminal Gauge Max	10 AWG ga
Terminal Gauge Min	14 AWG ga
Actuator	Standard
Voltage	120 / 277V AC V
Color Family	White
Manufacturers Part Number	4925W
Amperage	20 A
Wiring Syle	Back & Side Wired
Contact Type	Double Pole, Double Throw
Brand	Bryant
Certifications	CSA Approved
