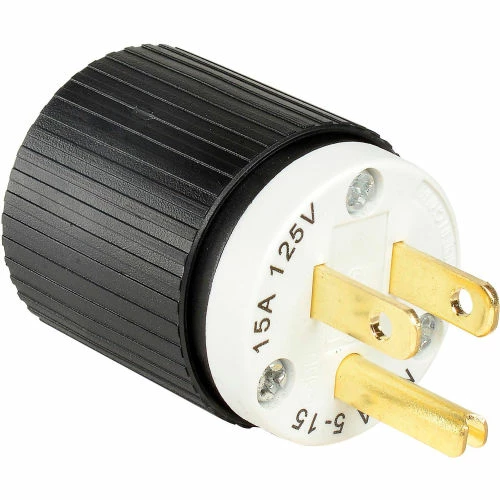

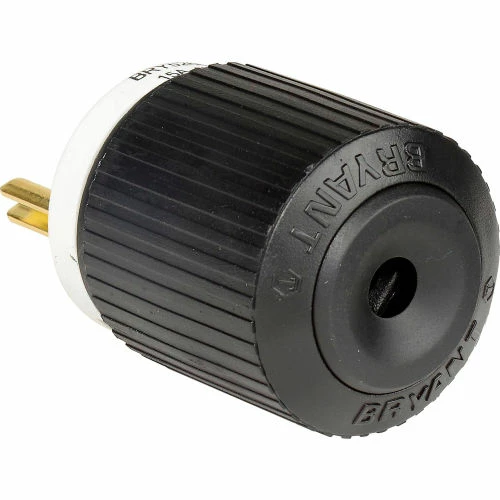

Bryant BRY5266NP TECHSPEC® Straight Blade Plug, 15A, 125V, Black/White

Construction:

• Terminal Screws: #8-32 Brass, Silver Finish on Neutral Screw, Green Finish on Grounding Screw
• Face Terminal Assembly: Impact Modified Nylon
• Cord grip: Impact Modified Nylon
• Cover: High-Impact, V-O Valox
• Terminal Cover: Clear Polycarbonate
• Plug Blades: Brass
• Terminal Clamp Nut: Zinc-Plated Steel
• Assembly Screws: Zinc-Plated Steel
• Terminal Identification: Brass-Hot; Green-Grounding; Silver-Neutral
• Terminal Accommodation: #18-#10 AWG Flexible Cord

Technical Specs:

• Dielectric Voltage: Withstands 1500V per UL498
• Maximum Working Voltage: 250V AC or DC
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature rise: Less than 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL498
• Cord Grip Range: 245″-655″ (62-166)
• Flammibility: HB or Better per UL94
• Operating Temperature: Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact)

Standards:

• NEMA#: 5-15P
• Cord Accomodation: Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C222 No49
• UL Standards: UL Listed to Standard 498 (Attachment Plugs and Receptacles)
• CSA Standards: Cetrified to CSA Standard C222 No 42M1984 (General Use Receptacles)
• Ul Listing: UL Listed File #E1381- Guide #AXUT
• CSA Certification: CSA Certified File #LR16215- Guide 20T2
• Federal Specifications: Federal Specification WC596 (where applicable)
• Complies With: NEMA Standards WD-1, WD-6
• Overseas_Approval: NOM, CE
