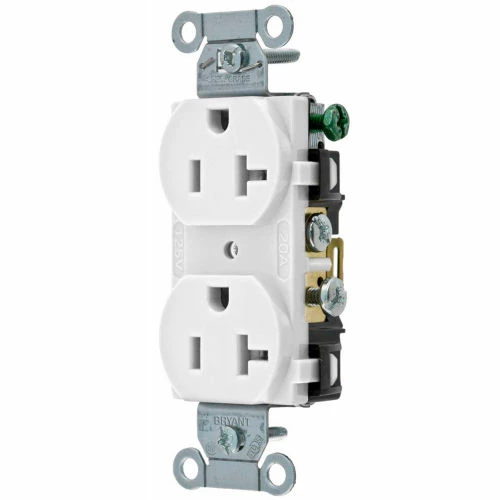

Bryant CRS20W Commercial Grade Duplex Receptacle, 20A, 125V, White, Side Wired

Construction:

• Base Material: Nylon
• Face Material: Nylon
• Line Contacts: High Performance Brass
• Clamp Nut: Steel
• Mounting Yoke: Steel, Nickel and Brass Plated 050″ (13)
• Grounding Screws: Combination Brass (Green) #8-32
• Grounding Clamp Nut: Brass
• Auto ground clip: High Performance Brass
• Mounting Screw: Combination Steel Zinc-Plated
• Terminal Identification: Brass-Hot; Green-Grounding; Silver-Neutral
• Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only

Technical Specs:

• Circuit ID: Hot Stamp
• Dielectric Voltage: Withstands 2000V per UL498
• Maximum Working Voltage: 250V AC or DC
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature rise: Less than 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL484
• Flammibility: UL 94 V2
• Operating Temperature: Maximum Continuous 60 deg C, Minimum -40 deg C (w/o impact)

Standards:

• NEMA#: 5-20R
• CSA Standards: Cetrified to CSA Standard C222 No 42M1984 (General Use Receptacles)
• Ul Listing: UL Listed, File #E2258- Guide #RTRT
• Federal Specifications: Federal Specification WC596 (where applicable)
• Complies With: NEMA Standards WD-1, WD-6
• Overseas_Approval: NOM, CE
