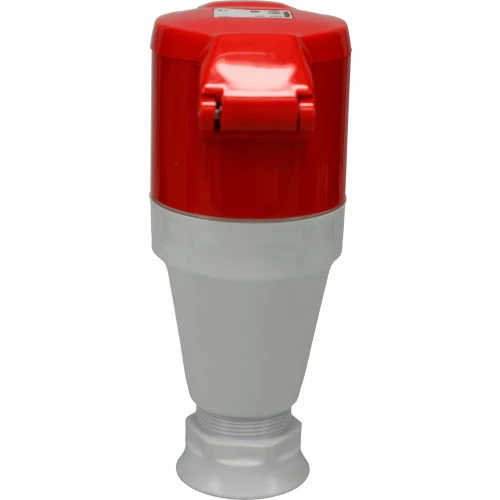

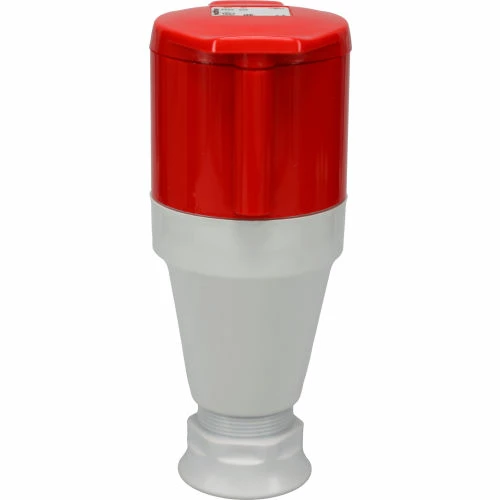

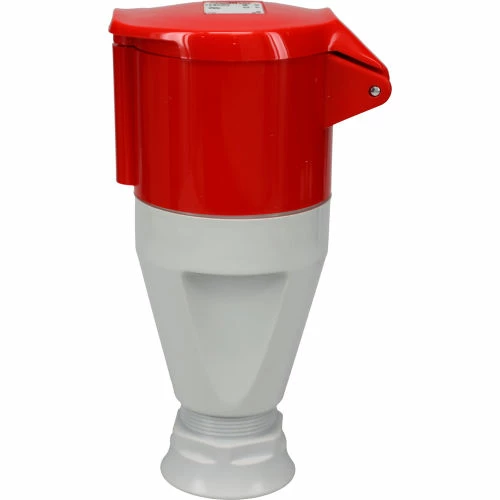

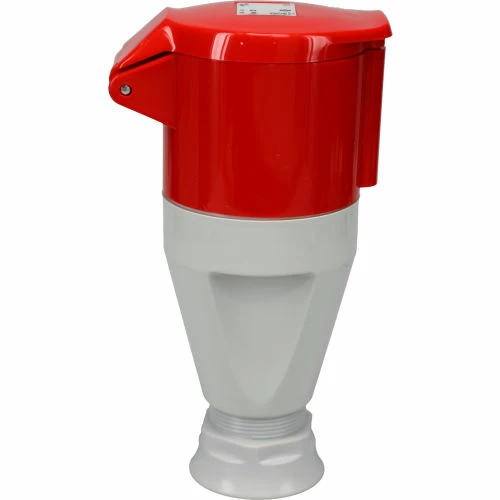

F. Walther Electric Walther Electric 332, Female Connector, 30/32A, 5P, 400Vac, 6 Hr, IP44, With Cable Gland

Features:

• UL Listed and CSA certified.
• Back shell has removable bell nozzle to accept adapter for liquid tight fittings.
• Recessed female contacts – finger recessed to prevent touching.
• Terminal identification – ground, neutral, phase – clearly marked.
• Color coded by voltage-easy match-no errors.
• Ground termination is positioned higher allowing for cable slack.
• Solid brass pins. Low contact resistance high conductivity. Long lasting, reliable electrical contact.
• Split contact sleeve with nickel plated steel springs. Provides optimum insertion/withdraw force and constant contact pressure liability. Also provides a wiping action (when disconnected) to clean terminals from oxidation build up.
• Double terminal screws on “All” amperage devices.
• Internal “Swing Away” Strain Relief is inside device.
• Ground “First to mate – Last to break” no shock safety.
• Arc flash protection if disconnected under-load all pins Male & Female are always completely covered.
• Chamfered funnel entry terminals guide and captures all wire strands.
• Neoprene “Onion Ring” cable sealing bushing – range taking seal.
• Economical back shell (cable sleeve). Easy identification for assembler to determine wire size.
• Back shell comes with Electro Zinc Plated Steel screws – corrosive resistant.

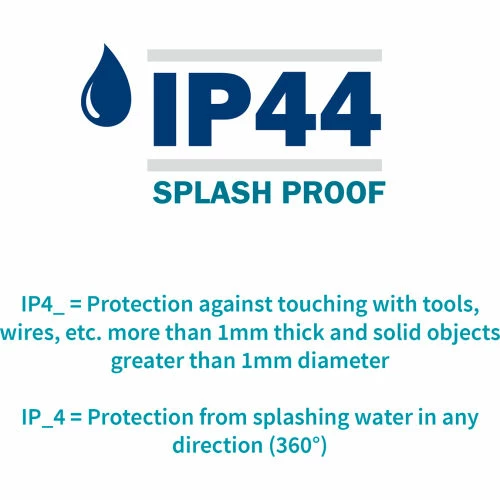

• Spring loaded flip cover. Protects against splashing water from any direction.
