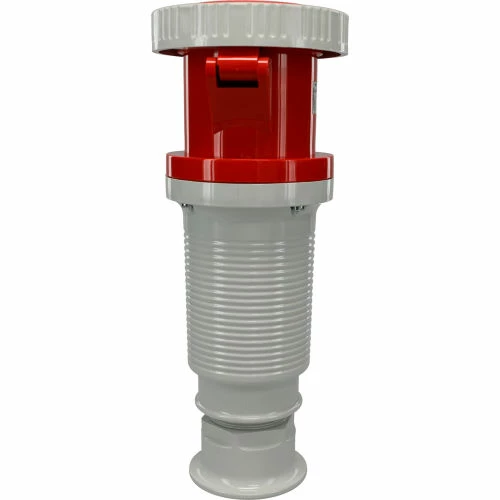

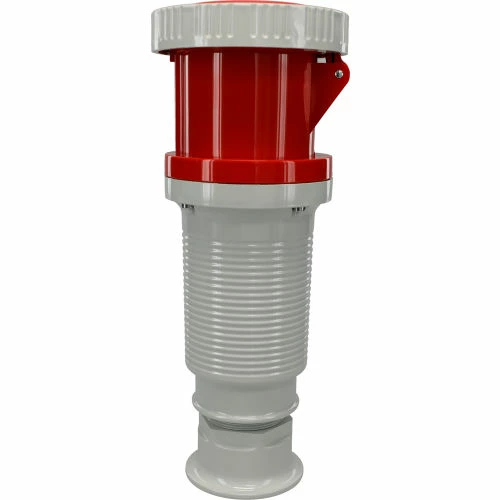

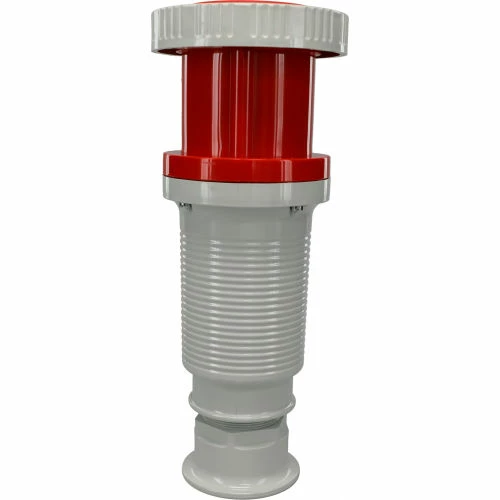

F. Walther Electric Walther Electric 379, Female Connector, 125A, 5P, 400Vac, 6 Hr, IP67

Features:

• IP67 protection – completely immersable for 24 hrs.
• Back shell has removable bell nozzle to accept adapter for liquid tight fittings.
• Back shell comes with Electro Zinc Plated Steel screws – corrosive resistant.
• UL Listed and CSA certified.
• Recessed female contacts – finger recessed to prevent touching.
• Split contact sleeve with nickel plated steel springs. Provides optimum insertion/withdraw force and constant contact pressure liability. Also provides a wiping action (when disconnected) to clean terminals from oxidation build up.
• Terminal identification – ground, neutral, phase – clearly marked.
• Color coded by voltage-easy match-no errors.
• Ground termination is positioned higher allowing for cable slack.
• Nickel-plated pins provided on all IP67 devices-corrosion resistant.
• Double terminal screws on “All” amperage devices.
• Internal “Swing Away” Strain Relief is inside device.
• Ground “First to mate – Last to break” no shock safety.
• Arc flash protection if disconnected under-load all pins Male & Female are always completely covered.
• Chamfered funnel entry terminals guide and captures all wire strands.
• Neoprene “Onion Ring” cable sealing bushing – range taking seal.
• Locking ring & gasket – protects against intrusion of dirt, dust and moisture when the male and female devices are connected.
• Spring loaded gasket cover. Protects against accidental encounter with live contacts. Also, protects against intrusion of dirt and moisture.
