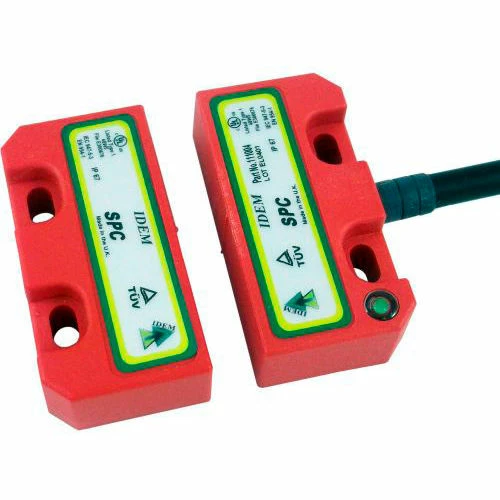

IDEM 111008 SPC Coded Non Contact Switch W/LED, 8Way, 2NC 1NO, QC M12

All IDEM Coded Non Contact Safety Switches have been designed to enable the conFormance to EN60947-5-3 and be used as directed by ISO12100, ISO14121 and EN60204-1. They have coded magnetic sensing which provides a wide sensing distance and provides a high tolerance to misalignment after sensing. They can be fitted behind stainless steel fittings and can operate from 4 directions even in extreme environments of temperature and moisture. When used in combination with most Dual Channel Safety Monitoring Relays they can be used to provide up to PLe/Category 4 to ISO13849-1. They offer a choice of high specification Plastic or Stainless Steel 316. Dual channel electronic safety output 2NC (1NO auxiliary optional) – Visual LED indication of switch status – Enclosure Protected to IP67 or IP69K – wash down Suitable – ConFormance to EN60947-5-3 PDF-S – No moving parts to give high reliability and long life – Wide sensing distance up to 14mm – Universal 22mm fixing centers.
