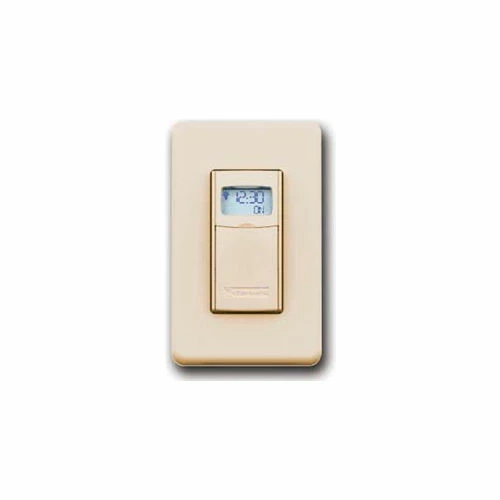

Intermatic EI400C Digital Auto-Off Timer 20 Amp 12-277VAC, 12-28VDC, Ivory

Original price was: $79.95.Current price is: $55.97.

SKU: Intermatic WBB200592 Categories: Electronic Timers, Switches, Receptacles & Sensors, Timers & Dimmers Tags: 1 @ 120 HP, 12-277VAC, 12-28VDC V, 147129, 20 A, Intermatic, Lighting & Electrical, SPST/SPDT, White

Quick responses, top-notch service.
Get the Best for Less
Secure Payments, Secure Shopping
fast shipping

The EI400 series provides more specification flexibility, ease of installation and absolutely silent operation. A factory supplied CR2 lithium battery provides up to three years of time keeping without AC power and user program selection is stored in non-volatile memory. A low battery indicator appears in the display when the battery requires replacement. A field selectable warning feature provides an audible and/or visual signal that the load is about to switch off. Functions to control all voltages and frequencies (within the contact ratings) with no adjustments required. Provides “true” 3-way control allowing the load interval to be started and stopped using a standard mechanical switch. Switch ratings – Resistive (heater): 20 amp, 120-277 VAC; Tungsten (incandescent): 15 amp, 120 VAC; 6 amp, 208-277 VAC; Ballast (fluorescent): 16 amp, 120-277 VAC . Not for use with sunlamps, saunas, etc.

Height	4.09 in
Depth	1.64 in
Width	1.77 in
Horsepower	1 @ 120 HP
Color Family	White
Amperage	20 A
Key	147129
Switch Type	SPST/SPDT
Variable Voltage	12-277VAC, 12-28VDC V
Voltage	Variable V
Resistive Wattage	1800-4155 W
Manufacturers Part Number	EI400C
Brand	Intermatic
