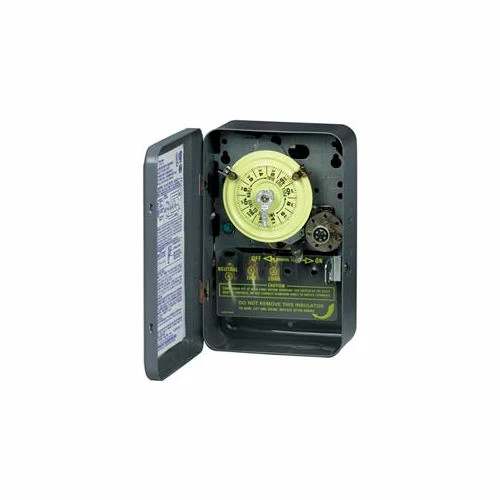

Intermatic T174R NEMA3R-24 Hour Dial Time Switch W/Skipper and Optional Carryover,208-277V, DPST

Original price was: $223.95.Current price is: $98.99.

SKU: Intermatic WBB200389 Categories: Electromechanical Timers, Switches, Receptacles & Sensors, Timers & Dimmers Tags: 147129, 40 A, 40 Amp 120 - 277 VAC W, 5 HP, DPST, Gray, Intermatic, Lighting & Electrical

Quick responses, top-notch service.
Get the Best for Less
Secure Payments, Secure Shopping
fast shipping

T170 Series ” Same features as the T100 Series plus a skipper option to omit operation on selected days. Cutout screws are inserted in the dial for days which operation is to be skipped. Provides up to 10 ON/OFFoperations each day with min. ON/OFF operations of 1 hour and max. ON time of 20 hours. Includes one CUTOUT tripper (also serves as an “ON” tripper), one “OFF” tripper and three skipping screws. Resistive Wattage is 40 Amp @120 – 480 VAC; Tungsten Wattage is 40 Amp 120 – 277 VAC. Product features 5 HP motor.

Height	9-3/8 in
Depth	3-5/8 in
Width	5.5 in
Horsepower	5 HP
Color Family	Gray
Amperage	40 A
Key	147129
Switch Type	DPST
Tungsten Wattage	40 Amp 120 – 277 VAC W
Voltage	208-277 V
Resistive Wattage	40 Amp @120 – 480 VAC W
Manufacturers Part Number	T174R
Brand	Intermatic
