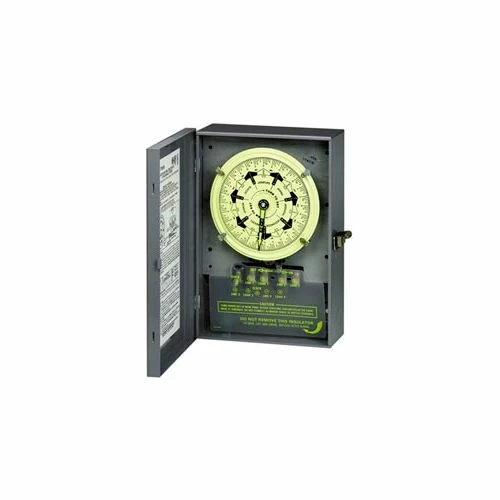

Intermatic T7802B NEMA1-7 Day Time Switch, Separate Clock Motor And Circuit Terminals, 208-277V
$248.95 Original price was: $248.95.$93.99Current price is: $93.99.
SKU: Intermatic WBB200490 Categories: Electromechanical Timers, Switches, Receptacles & Sensors, Timers & Dimmers Tags: 208-277 V, 40 A, 40 Amp @120 - 480 VAC W, 40 Amp 120 - 277 VAC W, Gray, Intermatic, Lighting & Electrical, T7802B
- Quick responses, top-notch service.
- Get the Best for Less
- Secure Payments, Secure Shopping
- fast shipping

These time switches provide a different “ON/OFF” program each day of the week. They also provide for 4 pole single throw and 4 pole (2NO/2NC) switching. This series provides true 7-day load control with minimum ON and minimum OFF times of 3-1/2 hours. The “BC” models with carryover provide a carryover of 16 hours minimum to maintain accurate load control even during power failure. When power resumes, the carryover automatically rewinds itself. Only 1 hour is required to rewind the carryover for each 2 hours of outage. Resistive Wattage is 40 Amp @120 – 480 VAC; Tungsten Wattage is 40 Amp 120 – 277 VAC. Product features 2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC single phase; 7-1/2 HP (28 FLA) 208 VAC three phase; 10 HP (28 FLA) 240 VAC three phase motor.
| Height | 12.5 in |
|---|---|
| Depth | 4 in |
| Width | 8.25 in |
| Tungsten Wattage | 40 Amp 120 – 277 VAC W |
| Voltage | 208-277 V |
| Resistive Wattage | 40 Amp @120 – 480 VAC W |
| Color Family | Gray |
| Manufacturers Part Number | T7802B |
| Amperage | 40 A |
| Key | 147129 |
| Switch Type | 2 NO / 2 NC |
| Brand | Intermatic |
