Legrand® 364569-02-V1 Surge Protected Duplex Outlet Kit

Original price was: $48.95.Current price is: $34.27.

SKU: Legrand WBB1639363 Categories: Plugs & Receptacles, Surge Protection Devices, Switches, Receptacles & Sensors Tags: -4°F to 131°F(-20°C to 55°C), -40°C to 85°C °F, 15 A, Legrand, Lighting & Electrical, NEMA 5-15R Female, UL1449 Transient Voltage Surge Suppressor, White

Quick responses, top-notch service.
Get the Best for Less
Secure Payments, Secure Shopping
fast shipping

Legrand® 364569-02-V1 Surge Protected Duplex Outlet Kit

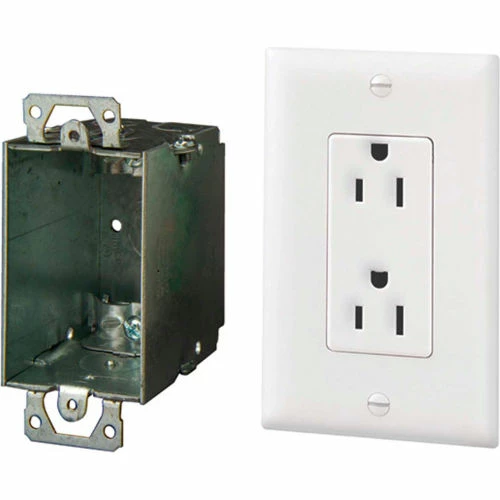

Duplex outlet power kits are an easy-to-use solution to providing power for system modules. Surge suppression provides protection for hot to neutral, hot to ground, and neutral to ground. The audible alarm signals when surge protection has expired. This kit includes duplex power outlet, metal “J” box, and faceplate kit. It can be used in On-Q Custom, Premium and Value-Line Enclosures.

Wire Gauge	10 – 14 AWG, copper conductor only ga
Number of Poles	2
Number of Receptacles	2
Frequency	60 Hz
Max Current	9kA A
Housing Material	Metal
Manufacturers Part Number	364569-02-V1
Description	Surge Protected Duplex Outlet Kit
Input Plug Type	NEMA 5-15R Male
Material	Thermoplastic
Mounting Location	Enclosure base
Height	4.5 in
Surge Suppression	UL1449 Transient Voltage Surge Suppressor
Storage Temperature	-40°C to 85°C °F
Operating Temperature	-4°F to 131°F(-20°C to 55°C)
Amperage	15 A
Color Family	White
Receptacle Type	NEMA 5-15R Female
Width	2.75 in
Depth	1.9 in
Brand	Legrand
