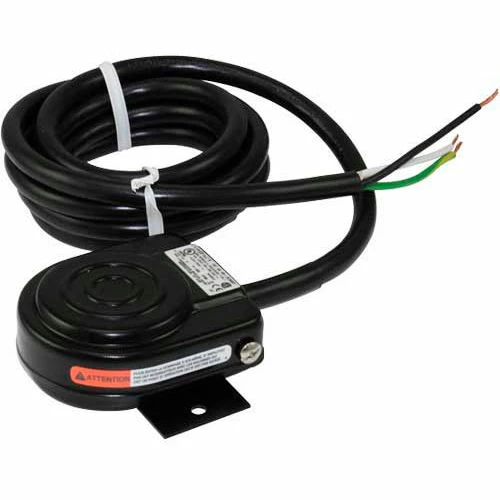

Linemaster 491-SC36MP Compact Foot Switch W/6′ Cord and Mounting Bracket, Momentary, Black, Steel

Linemaster 491-SC36MP Compact Foot Switch W/6′ Cord and Mounting Bracket, Momentary, Black, Steel

Compact foot switch, electrical, single pedal, momentary, SPDT wired N.O., Black, 6 ft. 18/3 Cord, mounting bracket, en 60529 degree of protection IP20, splash resistant (available momentary only)

Versatile compact design

Materials of construction:

• Steel housing is painted black
• Metal mounting plate spot welded to base on 491-sc36mp
• Twin baseplate formed from cast aluminum
• The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time

Features & benefits:

• Non-skid base pad for secure placement
• Compact in size and light in weight
• Supplied with internal adjustable strain relief
• Built for long life
• 2 Mounting holes for rigid mounting to floor or equipment

Options:

• Heavy gauge steel guard available
• Airval models available
