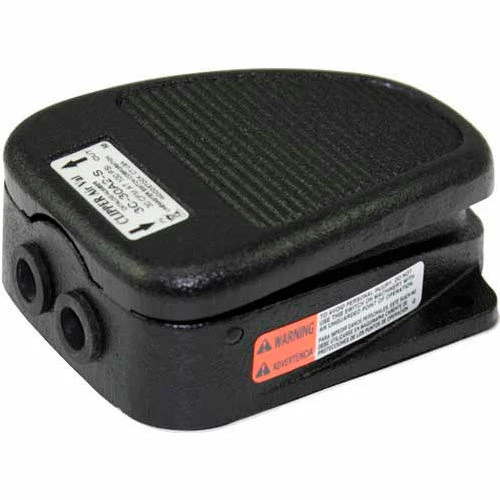

Linemaster 4C-30F2-S Airval Foot Switch, 4-Way Momentary, Black, Cast Iron

Linemaster 4C-30F2-S Airval Foot Switch, 4-Way Momentary, Black, Cast Iron

Clipper airval foot switch, pneumatic, single pedal, 4-way momentary, black, variable / momentary pneumatic control

Medium duty general purpose design

Materials of construction:

• Internal valve is constructed of a non-ferrous body, stainless steel plunger and teflon coated buna-n O-rings
• Air flows when plunger is depressed, stops flowing when plunger is released and exhausts back pressure on output side
• Air exhausts around plunger
• Operating temperature 0° to 131°f (-18° to +55°c)
• Rugged cast iron housing

Features & benefits:

• Designed for long life operation
• Nonskid base pad
• Plunger can be depressed flush with valve body without damage to valve
• Standard 1/8-27 npt Input and output ports
• Filtered and lubricated air supply is required for best operation
• Line pressure up to 150psi
• 2 Holes provided for rigid mounting to floor or equipment

Options:

• 2-Way, 3-way and 4-way models available
• Heavy gauge steel guard available
