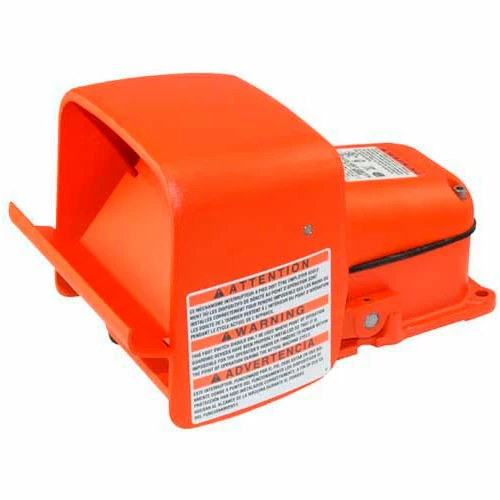

Linemaster 511-BOXG Hercules Anti-Trip Foot Switch W/Shield, Momentary, Orange, Cast Iron/Aluminum

Linemaster 511-BOXG Hercules Anti-Trip Foot Switch W/Shield, Momentary, Orange, Cast Iron/Aluminum

Hercules anti-trip foot switch, electrical, single pedal, momentary, single stage, extra oversized aluminum shield, orange
nema type 2, 4 & 13 UL enclosure 2, 4 & 13 CSA enclosure 2, 4 & 13 en 60529 degree of protection IP56

Driptight, dusttight, watertight, oiltight

Advanced design helps prevent accidental actuation

Materials of construction:

• Treadle and housing constructed from cast iron for strength and durability
• Protected by a strong cast aluminum shield
• Special airval models available to the O.E.M. On special order
• Painted alert orange
• Single 3/4″-14 npt Threaded conduit entry is standard

Features & benefits:

• Heavy duty foot switch features an anti-trip treadle mechanism that helps prevent accidental actuation through unintentional stepping on foot treadle
• Switch operation requires that the latch trip lever be released prior to depressing the foot treadle as in-line foot pressure is applied to the latch trip lever located at the rear of the foot treadle
• Smooth trip lever release and treadle depression motion results in good rate of operation
• Dual treadle return springs and latching mechanism
• Anti-skid rubber feet and 3 holes for rigid mounting to floor or equipment
• All models have a neoprene cover gasket plus O-rings on the actuating shaft and separate ground screw

Options:

• Oversize “o” and “ox” shield models accept oversized safety shoes and metatarsal foot guards. The “ox” shield has an additional 3/4″ (19.1 Mm) opening height as compared to the “o” shield
• Special dual 1/2″-14 npt Threaded conduit entry and metric sizes available to the O.E.M. On special order
• Special twin models available to the O.E.M. On special order
• Twin and triple models available – special order
