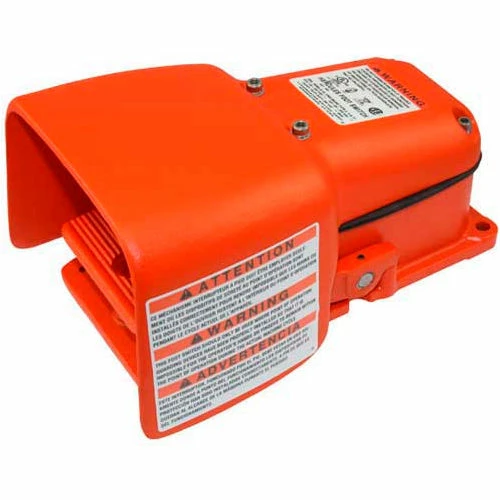

Linemaster 571-DWH Hercules Foot Switch W/Full Shield, Maintained, Orange, Cast Iron/Aluminum

Linemaster 571-DWH Hercules Foot Switch W/Full Shield, Maintained, Orange, Cast Iron/Aluminum

Linemaster 571-dwh Hercules foot switch, electrical, single pedal, maintained, SPDT, single stage, full aluminum guard, orange. NEMA type 2, 4 & 13 UL enclosure 2, 4 & 13 CSA enclosure 2, 4 & 13 en 60529 degree of protection IP56

Driptight, dusttight, watertight, oiltight

Full shield

Materials of construction:

• Treadle and housing constructed from cast iron for strength and durability
• Protected by a strong cast aluminum shield
• Painted alert orange
• Single 3/4″-14 npt Threaded conduit entry is standard

Features & benefits:

• Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated
• All models have a neoprene cover gasket plus O-rings on the actuating shaft and separate ground screw
• In all maintained contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the full shield so falling objects cannot easily release it
• 3 Holes provided for rigid mounting to the floor or equipment

Options:

• Oversize “o” and “ox” shield models accept oversized safety shoes and metatarsal foot guards. The “ox” shield has an additional 3/4″ (19.1 Mm) opening height as compared to the “o” shield
• Special dual 1/2″-14 npt Threaded conduit entry and metric sizes available to the O.E.M. On special order
• Special twin models available to the O.E.M. On special order
• Potentiometer models are available
• Rf wireless models are available
• Hercules models available with cast aluminum base and covers (except unshielded cover which is gray iron)
