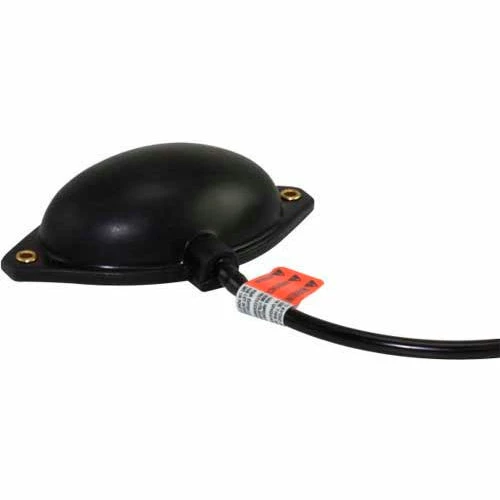

Linemaster 81SH12 Air Foot Switch, Momentary, Black, PVC

Linemaster 81SH12 Air Foot Switch, Momentary, Black, PVC

Vanguard air foot switch with isolated electrical air switch, black PVC bulb, momentary, en 60529 degree of protection IPXX master actuator, en 60529 degree of protection IP00 snap switch

Momentary/maintained airswitch, isolated electric snap switch

Ergonomic versatile design

Materials of construction:

• Molded PVC bulb
• Designed with isolated electrical airswitch
• Combines a foot operated air bulb and a remotely located electric snap switch
• Supplied with 8 ft. 1/8 In. Black PVC tubing
• Brass fittings
• Actuating bulb supplied with two grommet mounting holes (standard only)

Features & benefits:

• Easy to operate by hand or foot
• Up to 30 foot range using PVC tubing
• Isolates operation from electrically live switch
• Offers environmental protection from short or shock
• Designed for long life trouble free operation
• Simple field replacement of components
• Application versatility
• Ease of interfacing

Options:

• Air foot switches are also available in the premier and dolphin housings, as well as, a hand operated version
• Aluminum baseplate
• Dpdt model available
• Clear reinforced tubing available
