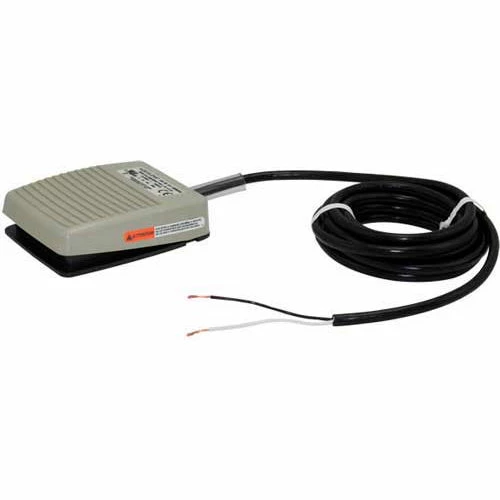

Linemaster 971-SC26 Aquiline Foot Switch W/6′ Cord, Momentary, Dark Gray, Plastic

Linemaster 971-SC26 Aquiline Foot Switch W/6′ Cord, Momentary, Dark Gray, Plastic

Aquiline foot switch, electrical, plastic, single pedal, momentary, single stage, SPDT wired N.O., 6 ft. cord, dark grey, en 60529 degree of protection IP20 (IP68 upon request) & 971-swno210 & 971-swno210a are NEMA type 1, 4x, 6 & 6p UL enclosure 1, 4x, 6 & 6p, and IP68

Watertight & corrosion resistant (available)

Versatile compact design

Materials of construction:

• SPDT, DPDT, two-stage, momentary operation
• Rustproof and corrosion proof polymeric material
• Raised ribs on treadle for positive traction during operation
• Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. To .400 Dia.

Features & benefits:

• Flame retardant to 94-vi
• Maximum versatility, total performance
• Non-skid base pad
• 2 Holes provided for rigid mounting to floor or equipment

Options:

• Custom colors, and color matching available with quantity orders
• Private labeling
• Accessory base units available for configurations using multiple switches
• Stainless steel full guard (single) 522-k26 available
• Supplied with series plug unless otherwise noted
• Special variations built to functional customers’ specifications are available on special order. Custom paint finishes, cordsets, nameplates and multi-pedal versions are available. Please contact linemaster® for additional information
• Heavy gauge steel guard available
• Medical guard available – see accessories page
