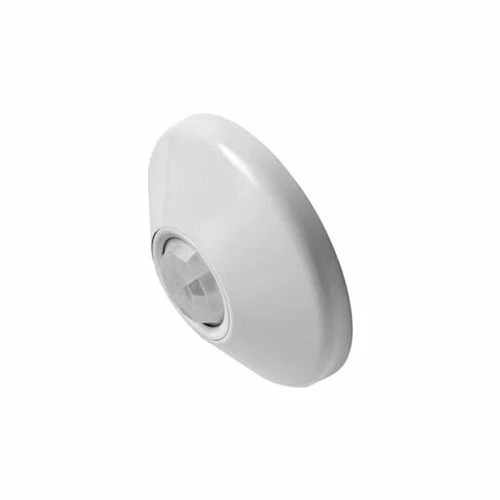

Lithonia Lighting Lithonia CM PDT 9 Standard Range 360&176; Sensor – Ceiling Mount Dual Technology (Pdt)

Intended Use:
Dual Technology (PDT) Sensor

Features:
Patented Dual Technology with PIR / Microphonics Detection, 360° Coverage, Push-Button Programmable, No Minimum Load Requirements, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator

Listings:
UL and CUL Listed

Construction:
This small yet powerful sensor provides line-of-sight PIR detection of small motion in a circular pattern, and combines overlapping Microphonics coverage for detection of occupants working in their cubical space.

Optics:
Patented Dual Technology with PIR / Microphonics Detection

Electrical:
The sensor is powered with 12 to 24 VAC/VDC and typically operates with a PP20 or MP20 Power Pack; enabling complete 20 Amp circuits to be controlled.

Installation:
Place the sensor along the entrance door wall to prevent it from viewing out into the hallway, ensuring the sensor can view the entire room from this position.
