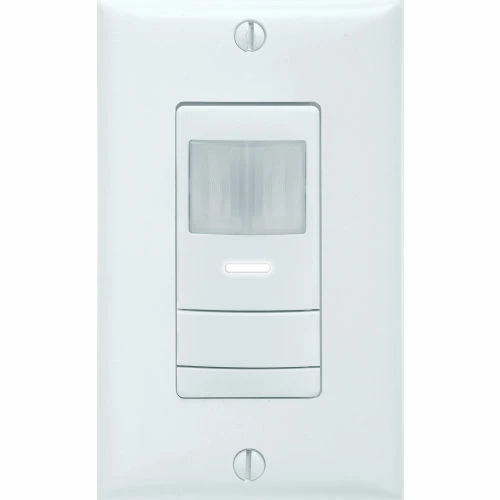

Lithonia Lighting Lithonia WSX WH Wall Switch Decorator Sensor – Passive Infrared (Pir): White

Intended Use:
Wall Switch Decorator Sensor

Features:
PIR Occupancy Detection, Small Motion Detection up to 20 ft, Self – contained Relay – No Power Pack needed, Interchangeable Hot & Load wires, 3-way multi-level switching compatibility, Adjustable Time Delay, 100 Hr Lamp Burn-in Timer, Green LED Indicator

Listings:
UL and CUL Listed

Construction:
A user programmable time delay ensures that once the room is vacated the sensor will time out and turn off the lights. Additionally, the WSD Series sensors have operating modes such as Reduced Turn On Sensitivity and Switch Disable that are all fully programmable using the front push-button.

Optics:
Small motion detection up to 20 ft

Electrical:
The sensor is line powered and can switch line voltage.

Installation:
Mounting: Single Gang Switch Box
