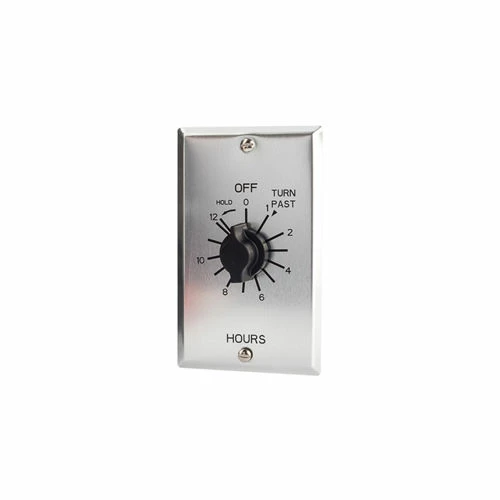

NSI TORK® C512HH 12 Hour Spring Wound Twist Timer with Hold, 125-277V, SPDT, Metal Wallplate

NSI TORK® C512HH 12 Hour Spring Wound Twist Timer with Hold, 125-277V, SPDT, Metal Wallplate

APPLICATIONS:

• Control whole house/ventilating fans, appliances, heat lamps, lighting, thermostats.

FEATURES & OPERATION:

• Unit is mechanically spring wound, requiring no electricity to operate. Switch contacts are made when knob is rotated and break circuit at the end of a timed cycle, thereby turning OFF load. CAUTION: This timer is not to be used in precision timing applications where timing could have dangerous consequences (i.e., sun lamp, sauna, etc.)

RATINGS:

• 125VAC, 20AMP inductive/resistive
• 125VAC, 7AMP Tungsten
• 125VAC, 1 HP
